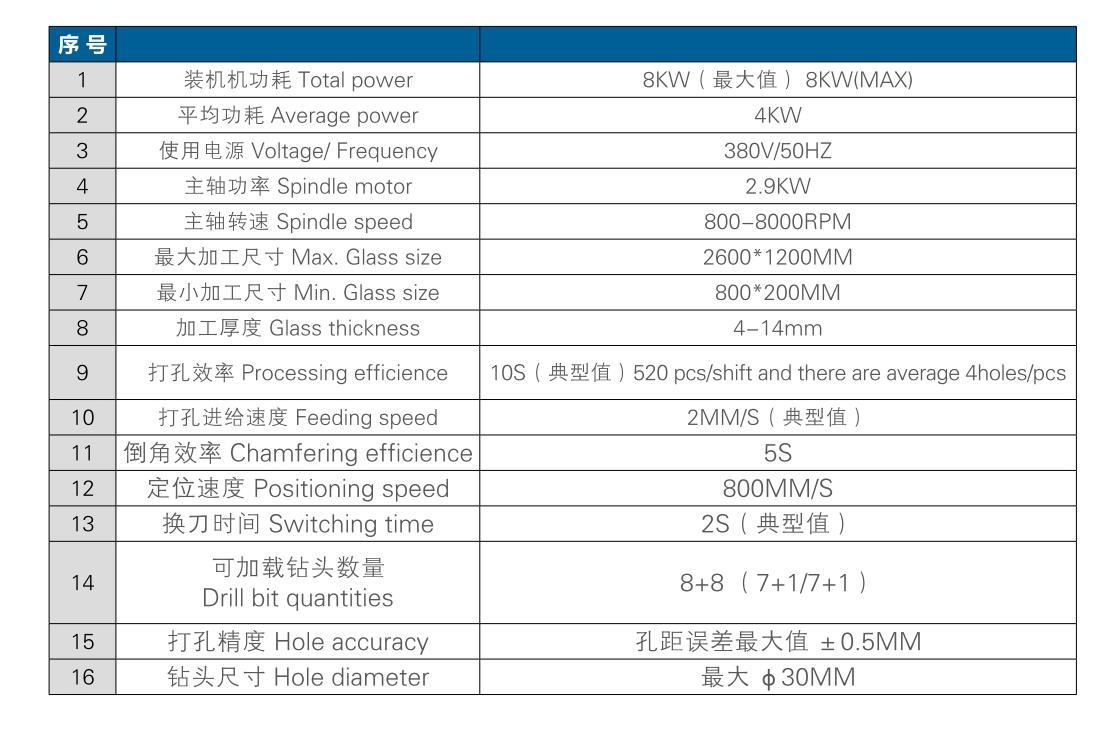

Turret-type Glass Drilling Machine
Product Features:
1. Automatic switching system, it realizes quick switching of 8 different tools automatically, without manual operation.
Glass Chamfering Machine

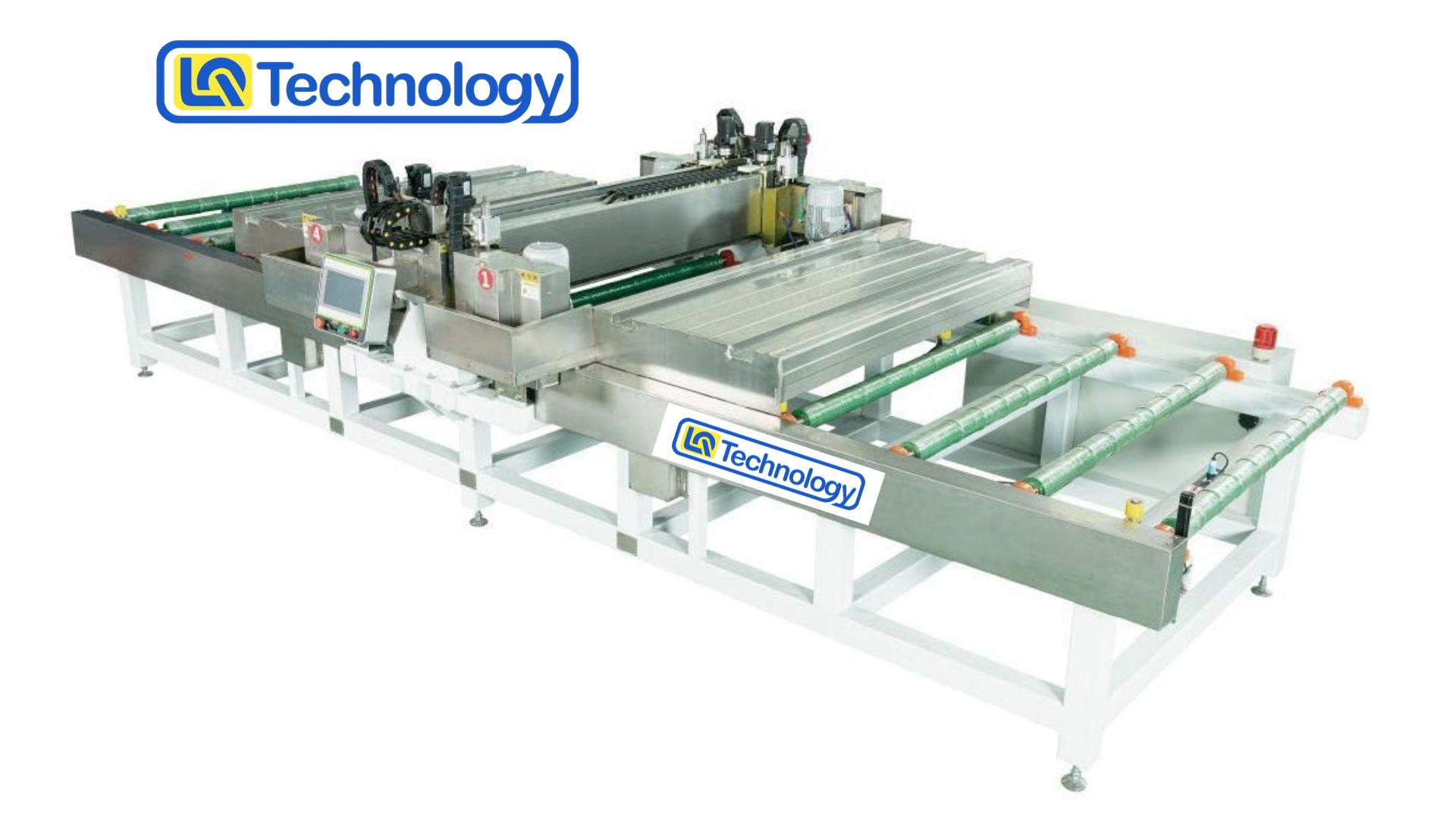

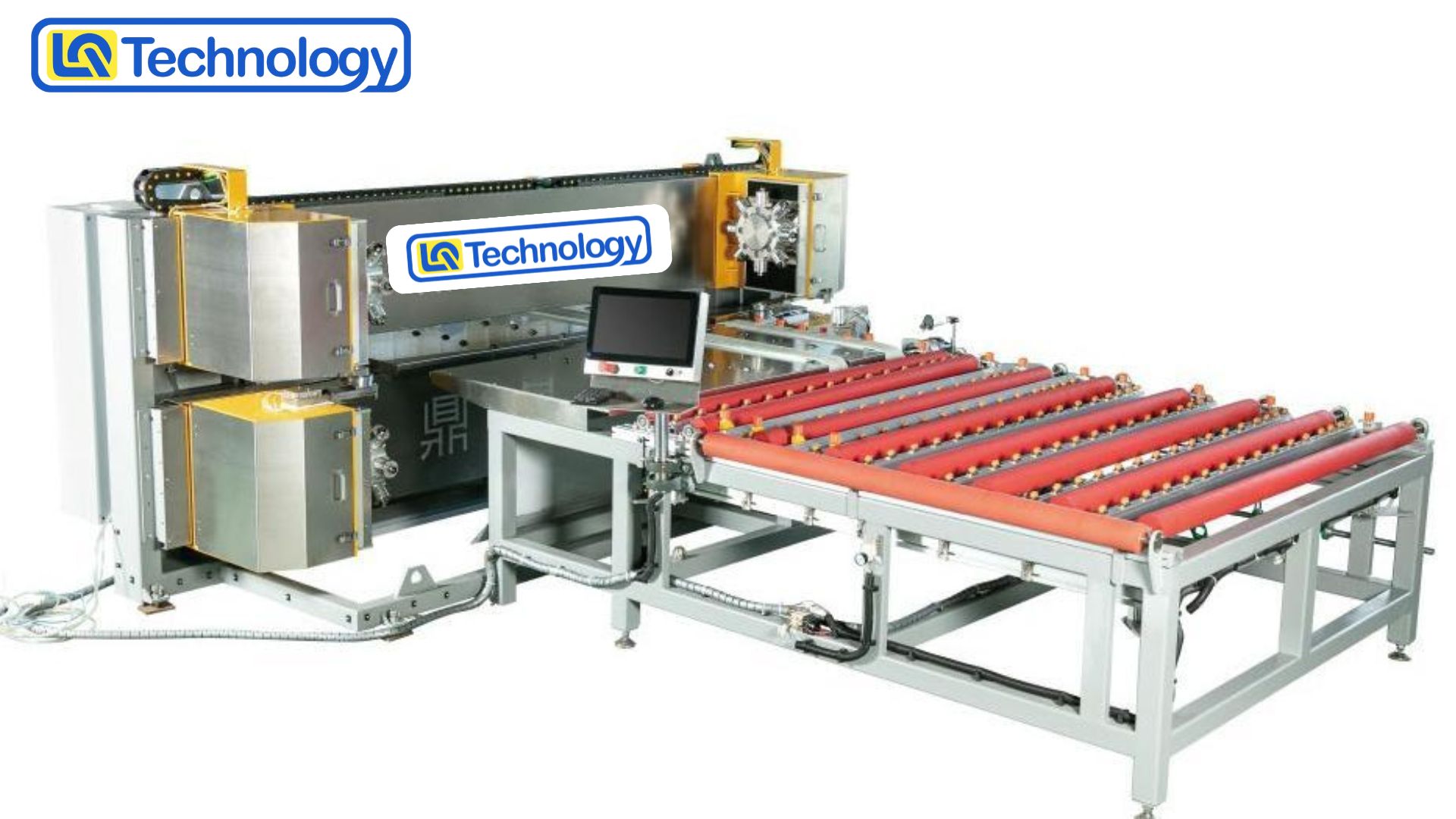

Intelligent One-Line Angle

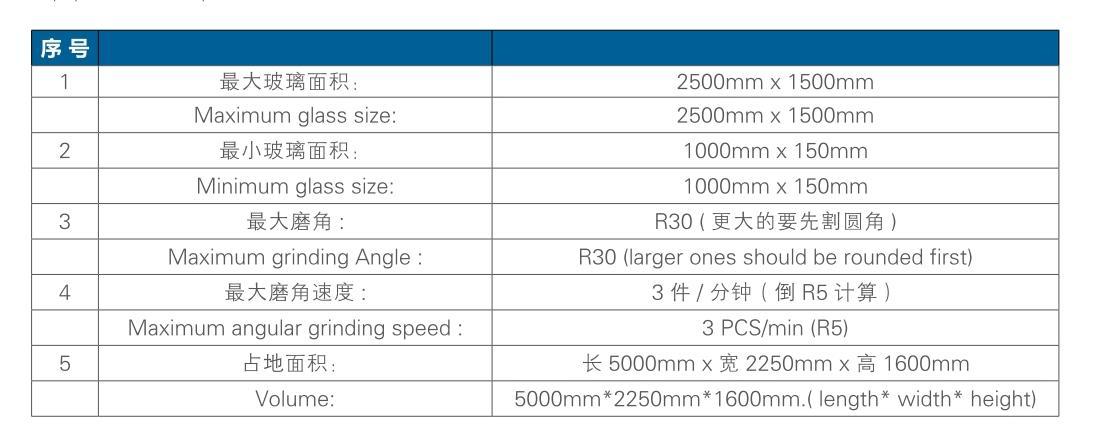

Intelligent One-Line Angle Grinding Machine Features:
1. Using floating spindle technology and touch sensing technology with a simplified algorithm, no need to manually set any grinding wheel parameters when changing a new grinding wheel — truly intelligent operation.
2. No detection or code scanning is required; both single and batch orders can be processed without a detection table.
3. Chamfering and belt polishing with edge grinding function — suitable for diamond (stair) glass and ultra-long glass that cannot be processed on a double-edge machine.
4. Chamfering automatically controls cutting depth based on grinding wheel resistance, with intelligent real-time fine adjustment of the R-angle trajectory to ensure stability. No corner burning, no missed grinding, and bright polishing without wheel marks. Reduces polishing wheel wear and saves grinding wheel costs.
5. Full servo control with bus communication system ensures real-time response and zero motion lag, guaranteeing a perfect R-angle trajectory and preventing signal interference.
6. Simple mechanical design minimizes unnecessary components. The transmission uses high-precision rollers, with the glass long side moving in the same direction as transmission — providing smooth conveying without deviation or jamming, especially suitable for narrow glass.
7. Grinding wheel moving components (guide rail, screw, gear, etc.) adopt an upper-mounted design with a labyrinth waterproof structure, extending the service life of the equipment.
8. Unique steel frame structure made of high-strength steel, annealed after welding and precision-machined to ensure the frame remains deformation-free.

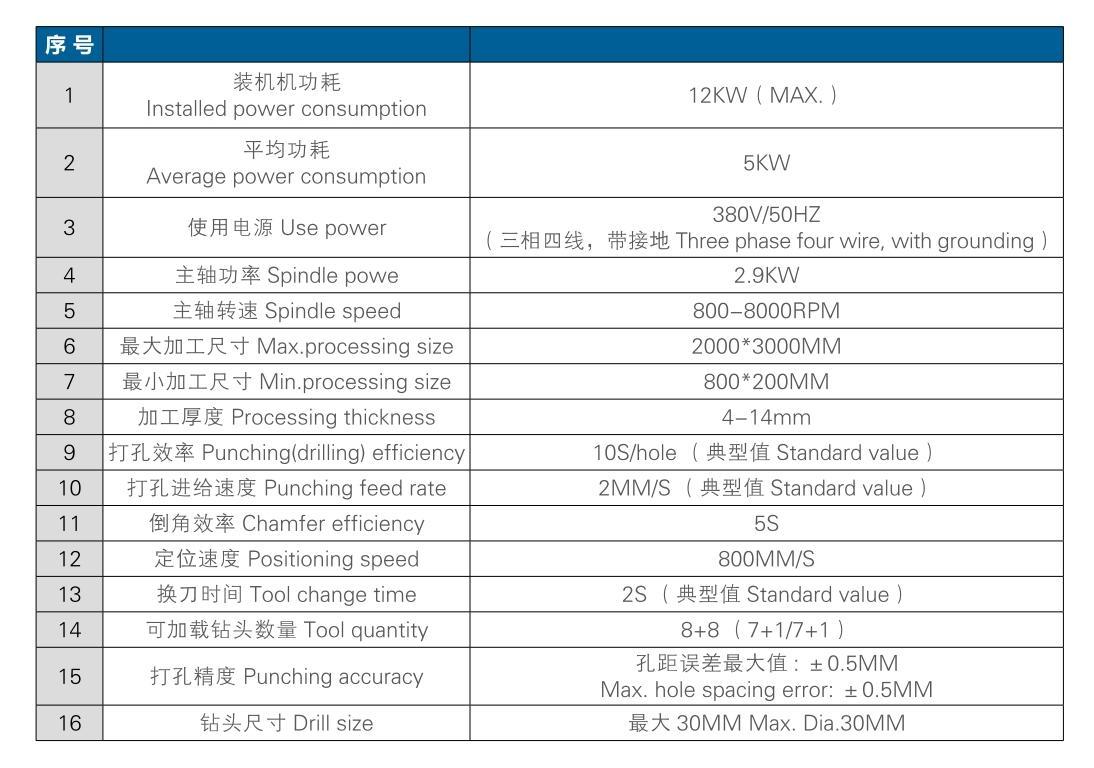

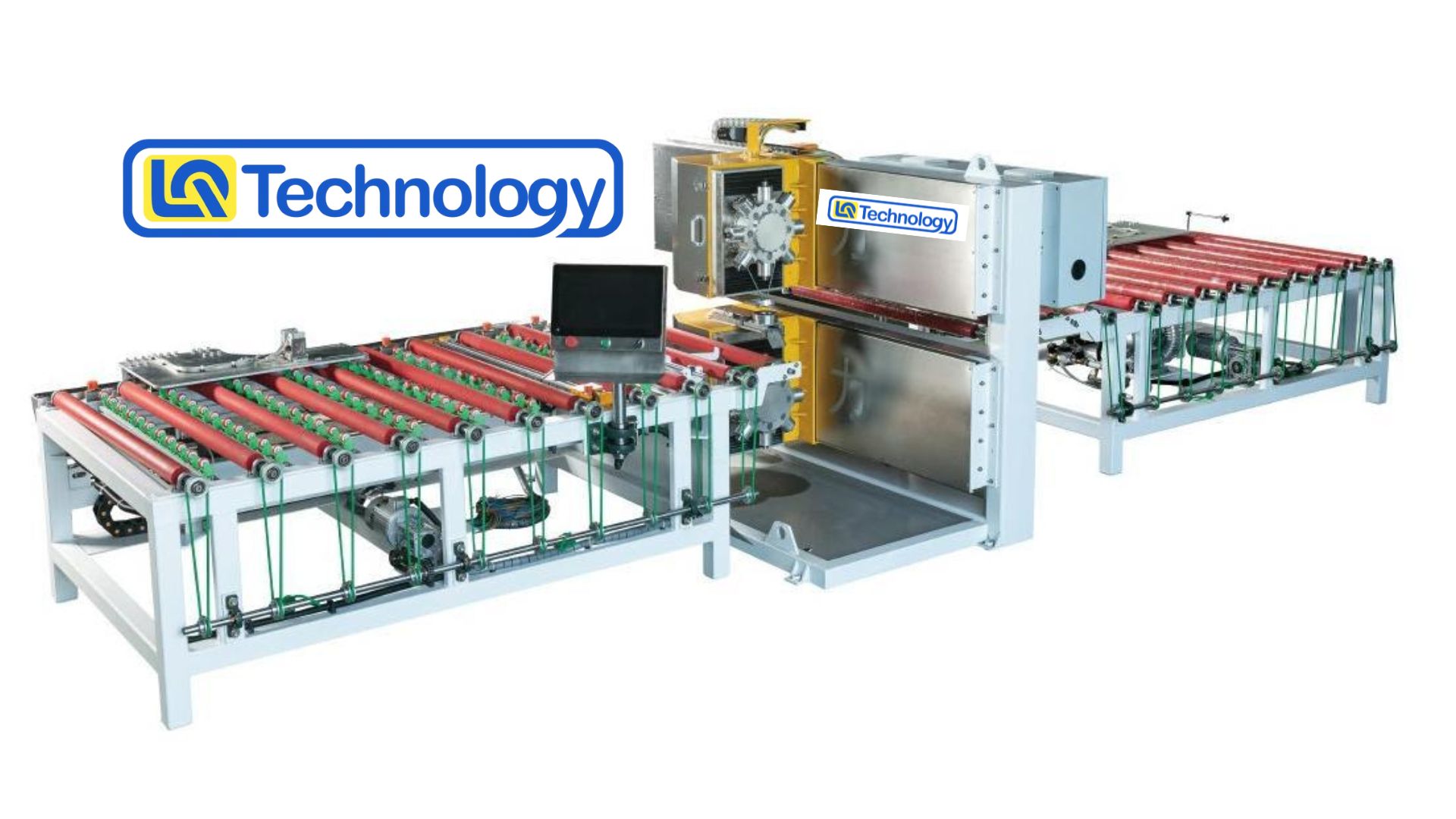

Double head tower type glass drilling machin
Product Features:
1. Automatic tool change system – enables fast and automatic switching between 8 different tool sizes without manual intervention.
2. High-precision tool changing structure – ensures perfect drilling without joints.
3. Reliable waterproof isolation design – guarantees stable and safe equipment operation.
4. Comprehensive cooling water recovery system – maximizes the recycling of cooling water used during drilling.
5. High-precision positioning mechanism – ensures hole-to-hole distance error is within 0.5 mm.
6. Built-in graphic editing software – allows seamless connection between office ordering and workshop processing, with optional ERP system integration.
7. User-friendly operation interface – simple and easy to learn.
8. Double-head structural design – greatly improves working efficiency.

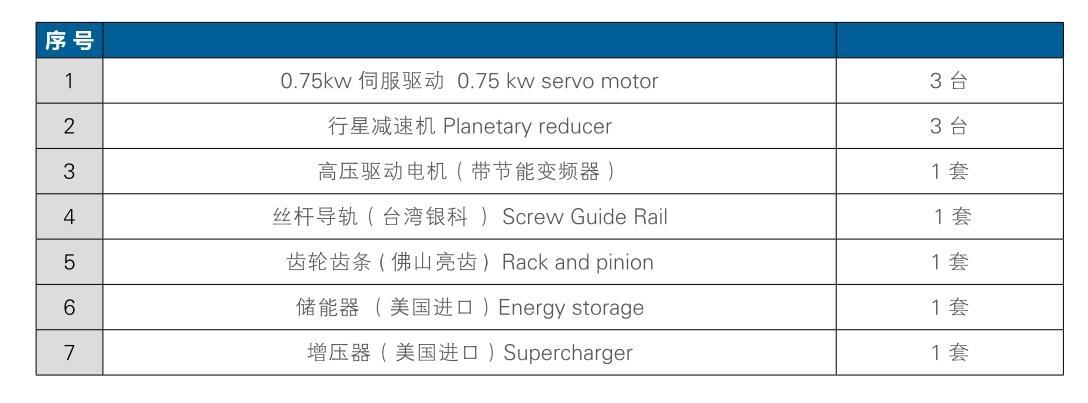

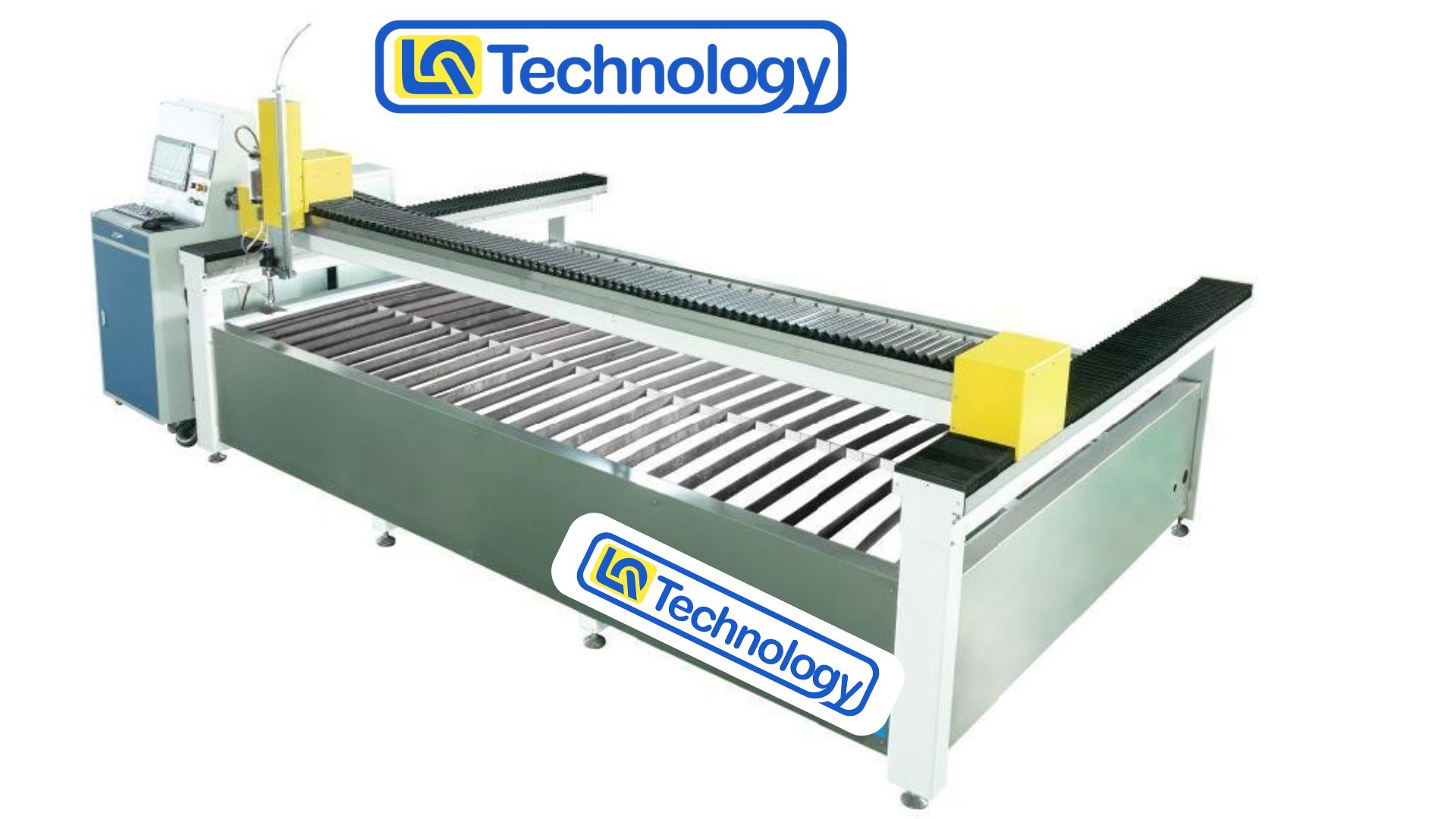

3020 water jet confiquration
Product Features:
1. The supercharger motor with 37KW freguency converter can save 60% eneray consumption than theconventional water cutter.
2. Hydraulic pressure with hiah-low pressure valve, low-pressure driling hiah-pressure cutting. careffectively avoid drilling and cracking, improve the rate of qualified finished products.
3. Air knife running speed, 5-30 meters per minute, faster than the conventional water knife speed 3 timesfaster, effectively shorten the air knife time, save energy consumptionHumanized operation interface, easy to operation.
Huichuan PLC is the control center of the whole machine, the real-time communication between thecomputer and the servo motor bus, through the touch screen display and setting, the running data can becalculated accurately.

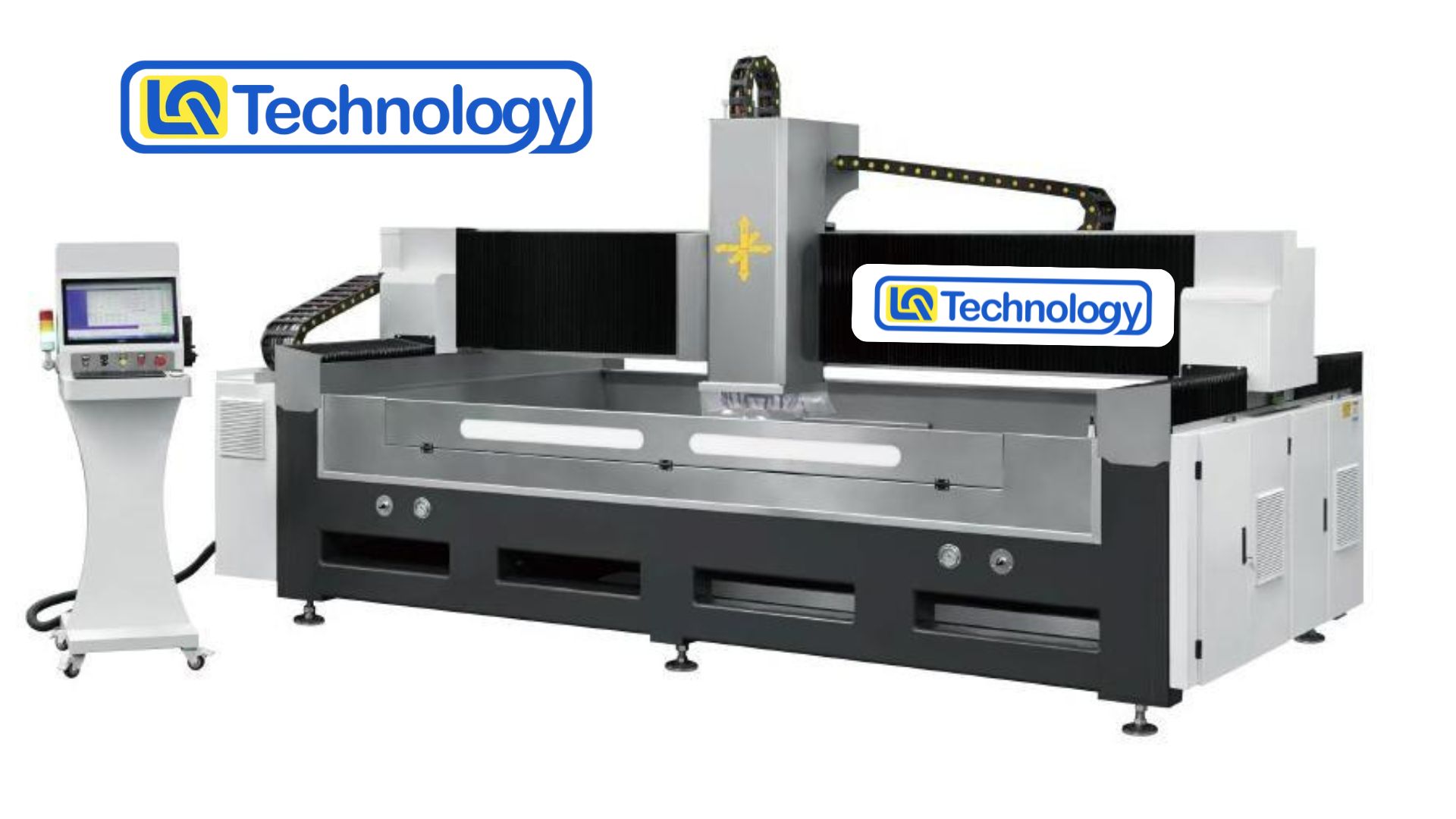

CNC Machining Center
Control system:
1. A brand new independent intellectual property software control system that can use CAD import toobtain glass size and position. No need for the operator to write the program in G-code.
2. The intelligent control system can automatically adjust mechanical errors, errors caused by grindingwheel wear, and automatically select suitable grinding wheels, speed, and pressure.
3. Based on the WlNDOWS operating system, the user-friendly interface is easy to learn. Support freelanguage selection in both Chinese and English.
4. Customizable scanning to import project files.
5. Use a motion control card (PC card) to control the svstem, combined with a servo svstem as the maincontrol system.
6. The system will automatically, check the feasibility of the, machining process, adiust the grinding speedaccording to different machining arc radii and manually control the acceleration and deceleration function in real time.
7. The polishing wheel loss is automatically adiusted through intelligent real-time compensation to ensurestable polishing effect and no missed polishing.
8. The software for processing irregular workpieces has a fast positioning function, which is far ahead inthe industry.
9. Rectangular and circular workpiece kevboards allow for direct input of dimensions without the need foidrawing and can be processed directly.

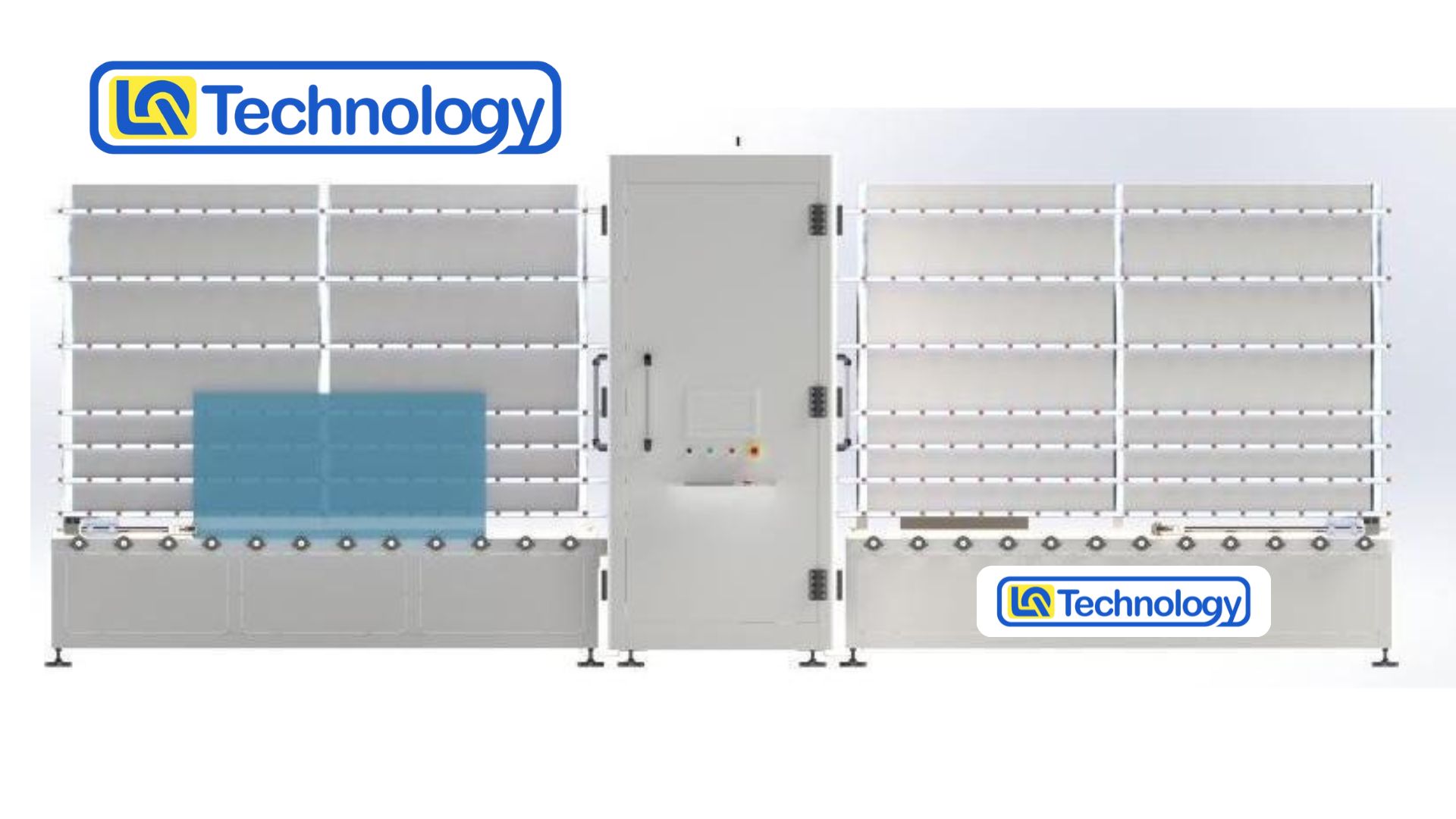

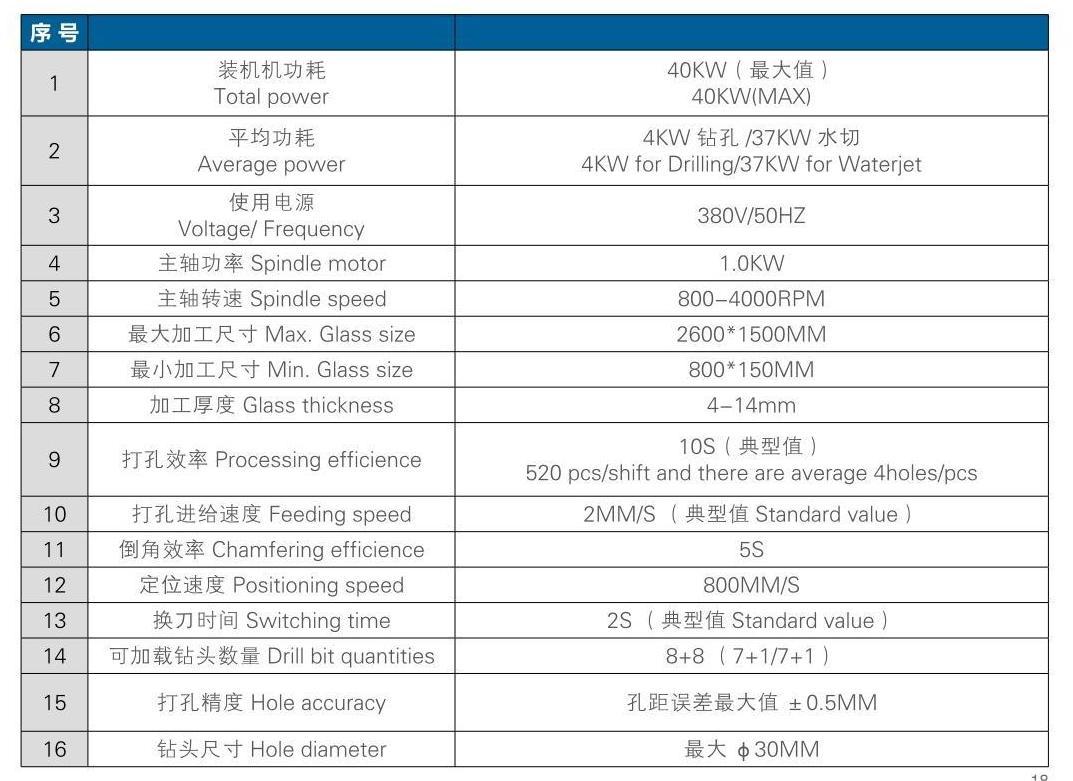

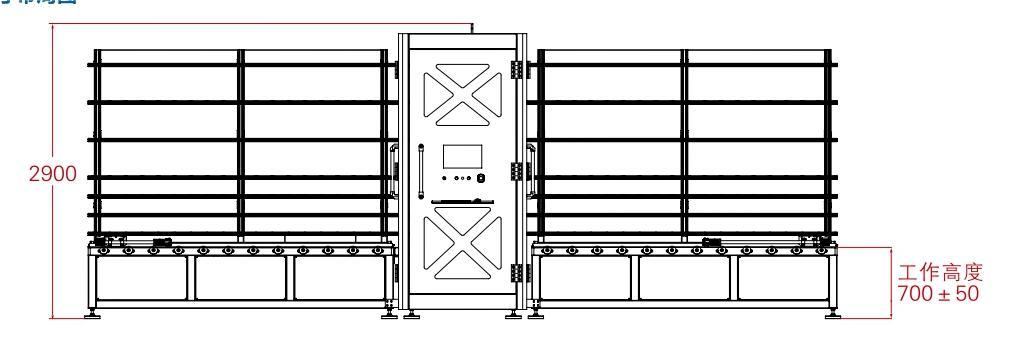

Vertical Glass Drilling and Wateriet Cutting Machine
Product features:
1. Automatic switching system, it realize quickly switching the 8 differents tools automatically, withoutmanual operation.
2. Eauipped with a wateriet cuttina system, it can be used for cutting irreaular-shaped holes.
3. Beliable waterproof isolation structure, extend the equipment life time.
4. Unique cooling water recovery structure, to acheive the max. degree of driling cooling water recovery.
5. High precision positioning structure, the error range between two holes is less than 0.5mm.
6. With drawina editina software, the office order is seamlessly connected to the workshop and can also beconnected with ERP system.
7.Humanized operation interface, easy to operation.
