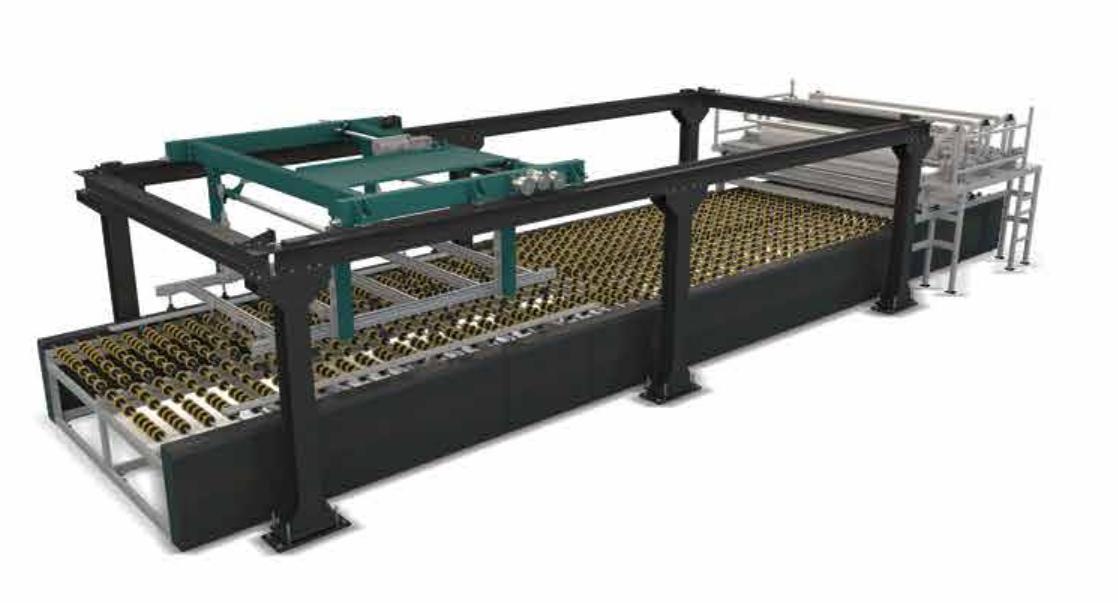

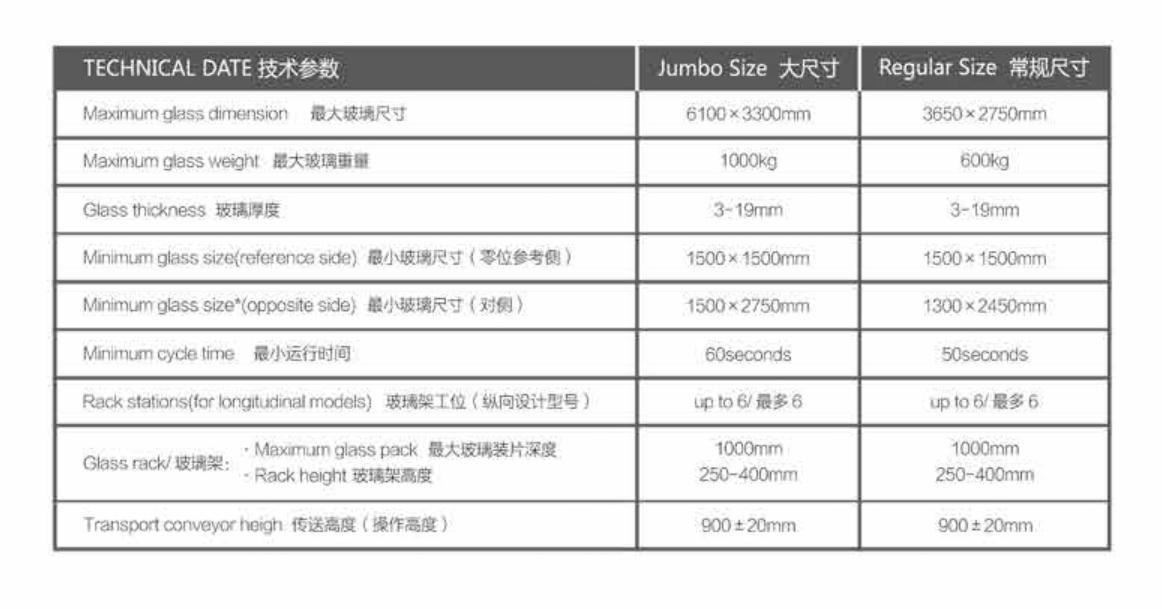

Automatic mechanical quick loading/unloading table
Mechanical loading table with series specification for customized choices. Including: Jumbo size loading table and regular size loading table, single arm system and double arm system, one position and multi positions (up to 6 position) totally have 8 mode. It can be used together with cutting table, tempering line, laminated line, coating line, double edger and mirror line and etc..
Automatic mechanical quick loading/unloading table adopts one-key operation to realize automatic operation. The machine main arm is lifted and fell by reducer motor. The slide structure is driven by gear. Sucker bracket adopts cylinder and connecting rod structure; The arm of machine underwent 326,000 structural fatigue tests. Excellent mechanical performance. The operator uses HMI to control the A/B arm to sucker glass. The two arms in machine can work independently to meet the user’s need for rapid production of small size laminated glass, In addition, the two arms can also operate synchronously to realize the big size glass loading/unloading. This machine has realized the purpose of high-efficiency production, balanced control and multi-purpose production, fully meet the needs of users for small-size glass loading/unloading.

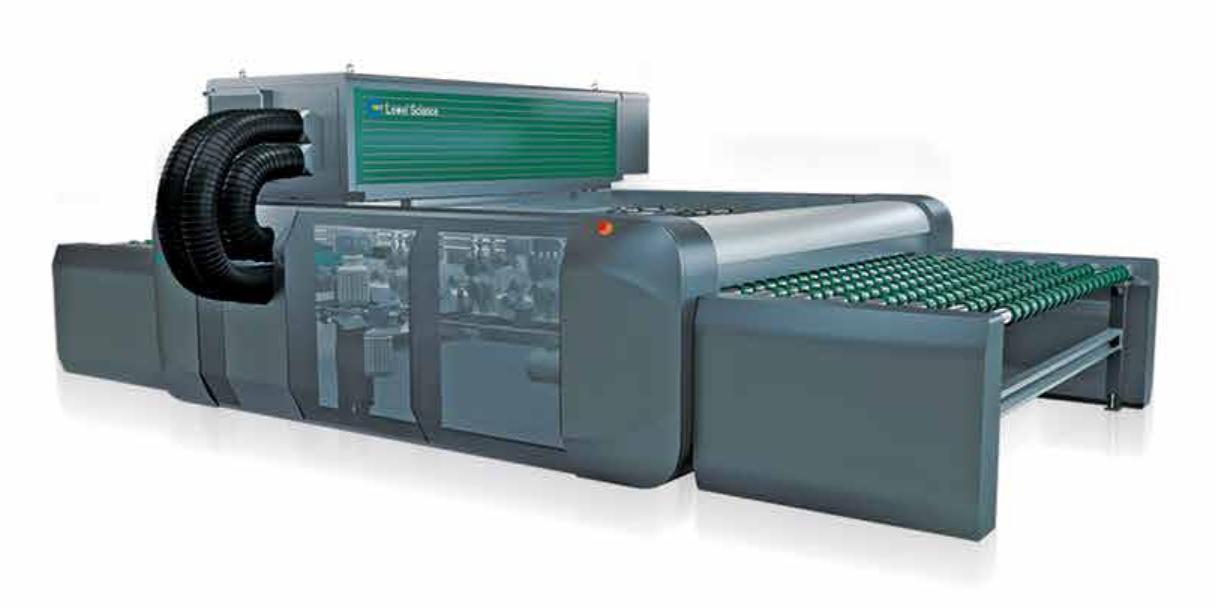

High cleanliness washing machine
LW-QX/G Glass washing & drying machine is used for flat glass and it is one basic machine for glass processing factory, LWDY washing machine has much specification including: common flat glass series, coating glass series, Low-E glass series, photo voltaic solar glass series and electronic touch screen glass series. Glass thickness can range from Imm to 19mm,speed can range from 0.6-14.5m/min, glass width can range from 0.6-3.3m,washing and drying section can be lifted, digital displayed and abo can be designed according to customer’s requirements.te.
Technical feature:
The main frameworks apply 45# steel (Aluminum option), anti corrosion and strong
Roller brush transmission uses belt structure with stable transmission and lower noise.
Main transmission uses synchronization with helical gear, stable running and constant speed.
Loading section is equipped with stainless steel water collector, rubber roller transmission realize self-cleaning. front end is equipped with high pressure spraying device.
Drying section: the blower equipped with muffle cotton and air feeding filter screen pack for less noise and better drying conditions, with special designed air knives low noise and better drying result.
Circulation water-use system: Water box uses high quality stainless steel, equipped with fast-inserting joint at connection position of water pump to make water tank easily to be washed daily and heating system of water tank is an option.
Automatic double-side positioning table
The positioning table adopts the design of both automatic positioning, and the longitudinal positioning adopts the structure of the push-bar by the cylinder to realize the glass automatic positioning in the transmission process. The transverse orientation adopts optical fiber sensing signal and mechanical flip plate structure to achieve accurate positioning of glass of different sizes. positioning accuracy can be up to 40.3mm. The transmission wheels are made of special materials to ensure that no traces are left on the glass surface. Drive roller adopts half shaft form; Two frequency conversion motors are used on both sides, which can operate independently or synchronously on both sides.

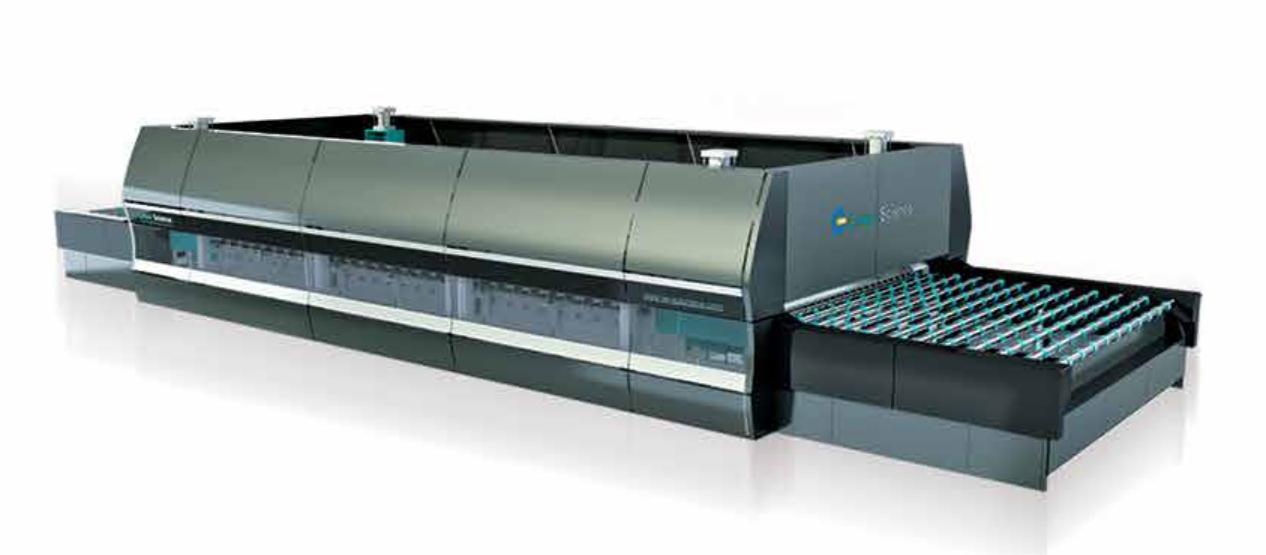

New style air convection press machine
LW-PYJ/L-press machine with forced air convection and infrared radiation heating system, one new technology, it is much better for tempering laminated glass, jumbo size laminated glass and Low-E laminated glass and SGP laminated glass processing.
The equipment has following advantages:
Improning laminated glass quality: glass and film can be heated evenly, high percent of passe good edge sealing and no film overheating
Improving production efficiency: apply force convection heating system which update the nage of the energy, compared with the traditional design with same power, the lamination spond can be more than 30%.
Widely aned and applied: It is suitable for production of all laminated glasses, especially Sanimated glass of high specification. It could make laminated glass of multilayer being bested moly, 10% f. glass son oxidized and SGP lamination’s rate be higher and heter
Farod comection structure is cross-fan structure. The wind press is more unibes, Higher
